Sandvik Rock Tools Sandvik Down-The-Hole (DTH)

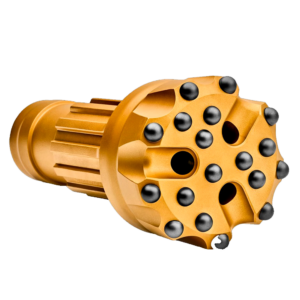

Sandvik Down-The-Hole (DTH) drilling tools deliver the lowest cost per meter drilled in the segment. Sandvik Malleo hammers are designed for maximum efficiency and energy utilization, resulting in lower fuel consumption and increased profitability. Cold-forged (seamless) DTH drill tubes ensure straightness and precision during drilling, as well as a long service life.

Specifications:

High, sustainable performance driven by the Sandvik tungsten carbide recycling program and the patented Malleo hammer design, which reduces hydraulic energy and fuel consumption.
Compatibility with most DTH casing systems on the market.
The new Malleo hammer line, featuring PowerCarbide bits and buttons, is a testament to Sandvik’s constant pursuit of innovation and performance.

Enter your information to download the technical data sheet

Name*

Email*

Phone*

Country*

Department*
